Antenna is of the most critical elements of Wireless Communication Network. Antenna represents only a small part of the overall cost of a communication site, but its performance impact is enormous. Its function is to transform conduction current - this invisible phenomenon that makes radio communications possible. The antenna's impact is determined by choosing appropriate characteristic defined by its specification.
Currently, our In-Building Antennas has include :
| PW-IOA 820/2500 |
|
 |
Indoor Omni Antenna with wide frequency range (820-2500Mhz), excellent polarization : 360degree Horizontal Beamwidth and 90degree Vertical Beamwidth, high gain (max 4.5dBi), high input Power (100Watt). Its radiating material is made from aluminum which combines high strength, low weight, good resistance to corrosion and good conductivity. |
|

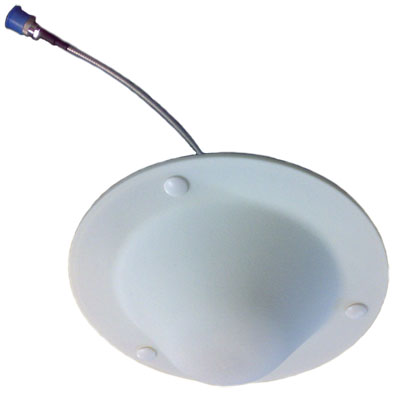

PW-O-800/2700 |
|
Indoor Omni Antenna with Low VSWR (typical 1.35), wide frequency range (800-2700Mhz), 3-4dBi gain, High input Power (100Watt) and 50cm Pigtail.It has 360degree Horizontal Beam-width & 65degree Vertical Beam-Width.
|
| PW-IOA-460-NF |
|
|
In-Building Omni Antenna with ICM (Inside Ceiling Mounted) version.It has wide frequency range (800-3000Mhz), good polarization : 360degree Horizontal Beam-width and 75degree Vertical Beam-Width, 3-6.5dBi gain, Input Power (100Watt).
|
| PW-P2-800/2500 |
|
|
Indoor Bi-Directional Antenna with wide frequency range (820-2500Mhz), High input Power (100Watt) and 50cm pigtail Horizontal Beamwidth 65degree and Vertical Beamwidth 25degree, High gain 5.5 to 6.5dBi.
|
| PW-ISA-820/2500 |
PW-P-800/2500 and PW-P-800/2700 |
|
Indoor Panel Antenna with Low VSWR (typical 1.35) wideband (800-2700Mhz) and 30cm Pigtail. It has polarization 65 till 75degree for Horizontal Beam-width and 50 till 80degree for Vertical Beam-Width plus High gain 6-9dBi.
|
| PW-ODA-460D-NF |
|
|
Directional Antenna with Omni Antenna Shape.It has wide frequency range (800-3000Mhz), good polarization : 90degree Horizontal Beamwidth and 40degree Vertical Beamwidth, high gain (max 9dBi), input Power (100Watt).
|
To serve special requirement on RNP, we also design Micro-Outdoor Antennas : |
| PW-HGP-1710/2170 |
PW-HGP-800/2500 and PW-HGP-820/2500 |
 |
Wide band (800-2500 Mhz) High Gain (max 11dBi) Panel Antenna with good polarization : 50degree Horizontal Beamwidth and 70degree Vertical Beamwidth, high Power (100Watt).This antenna is applicable for indoor or outdoor installation. |
| |
|
|
PW-OHG-65-1710/2500 or PW-OHG-90-1710/2500 High Gain (Max 14.5dBi) Panel Antenna with frequency 1710-2500Mhz, Horizontal Beamwidth 65deg & Vertical Beamwidth 17deg.
PW-OHG-65s-1710/2500 Small Size of PW-OHG-65-1710/2500 (9.5-11dBi Gain) 1710-2500Mhz, Horizontal Beamwidth 70deg & Vertical Beamwidth 30deg
PW-OHG-65s-806/2700 Wideband (806-2700Mhz) Micro Outdoor Panel Antenna with Gain (11dBi), Horizontal Beamwidth 65deg & Vertical Beamwidth >35deg.
|
